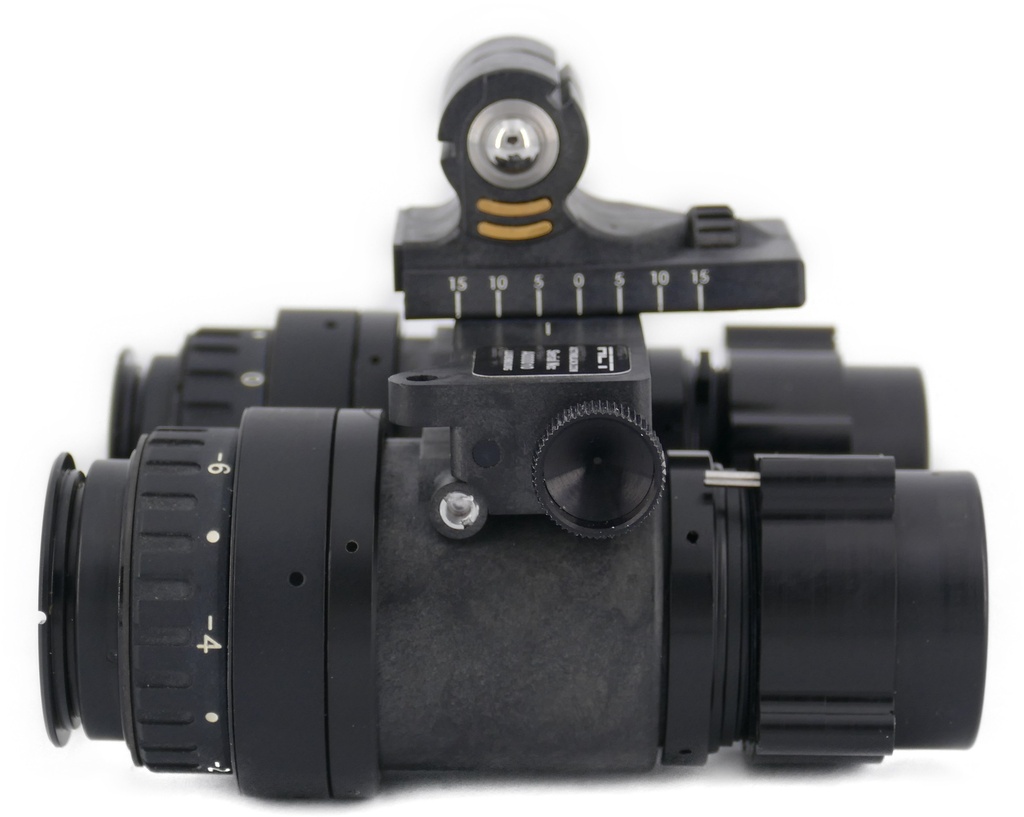

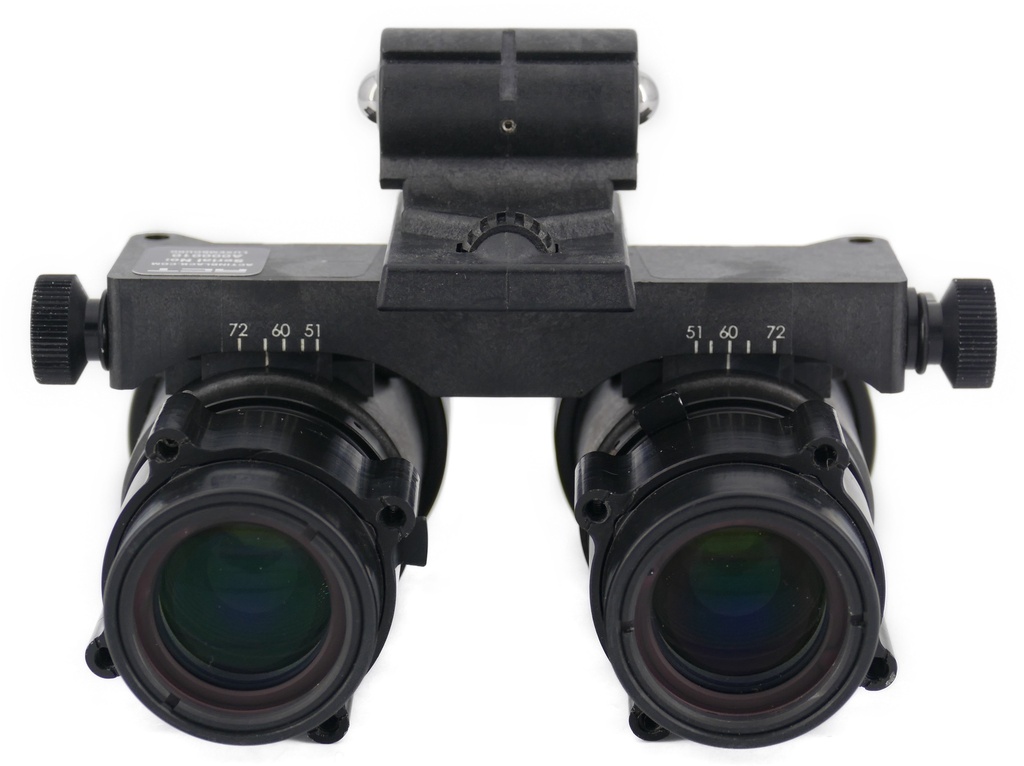

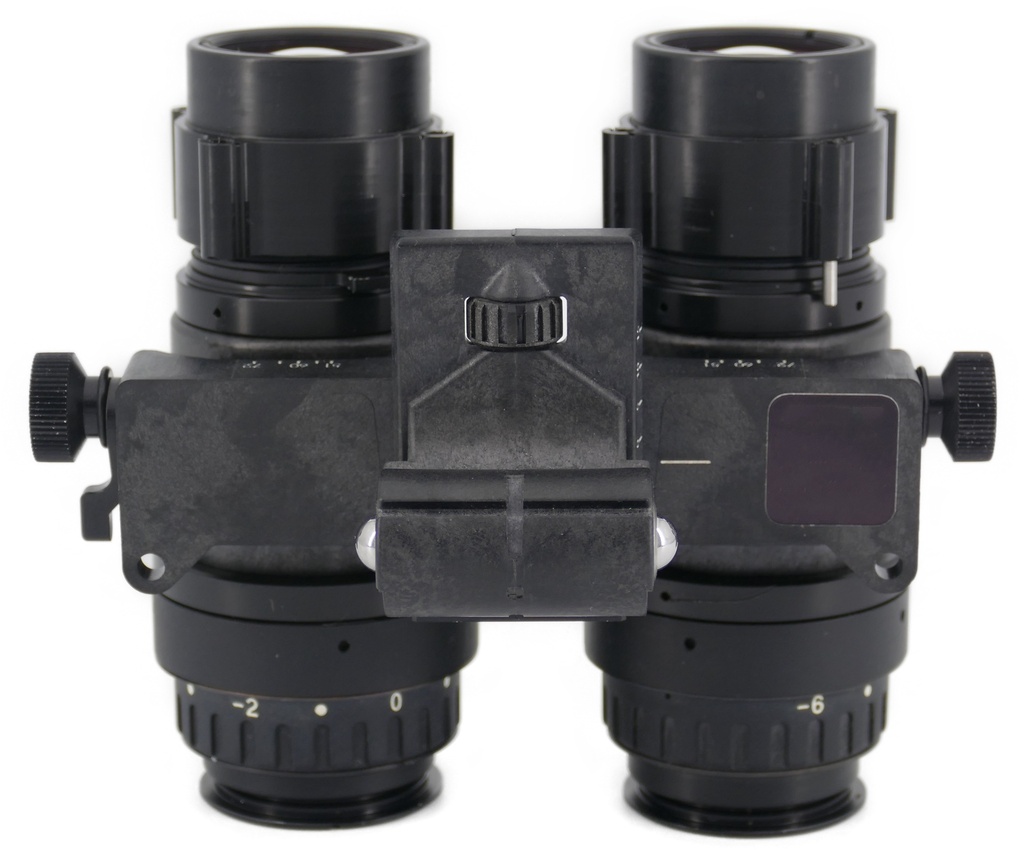

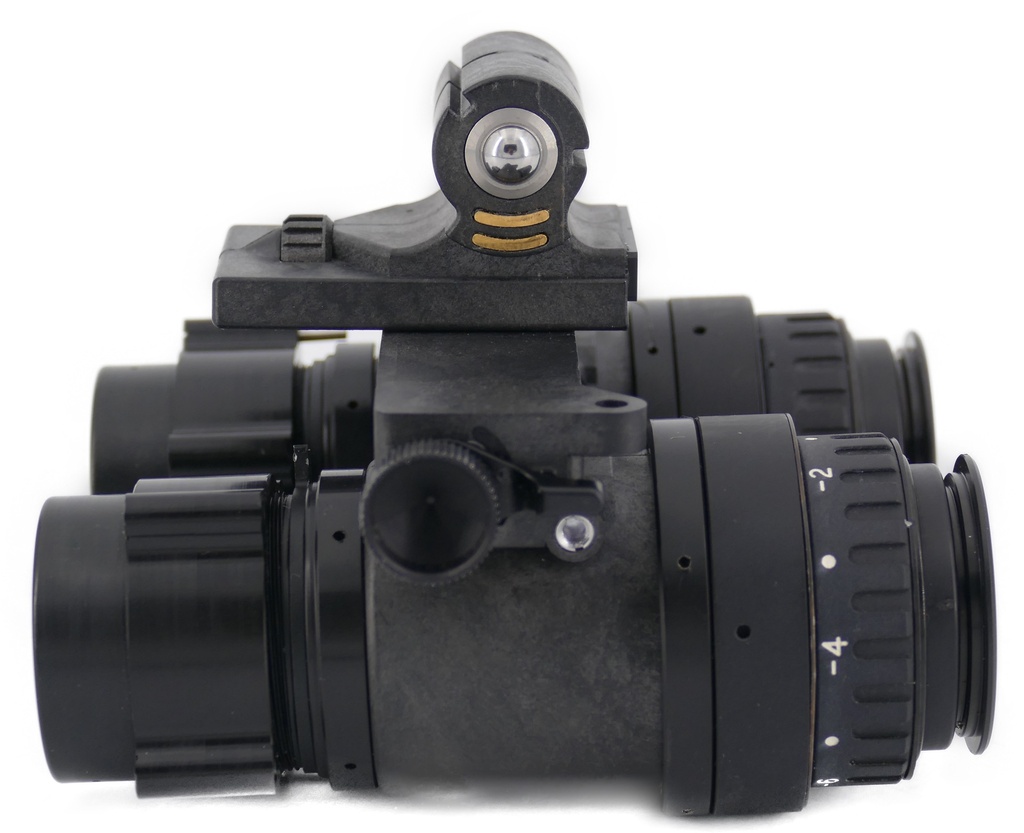

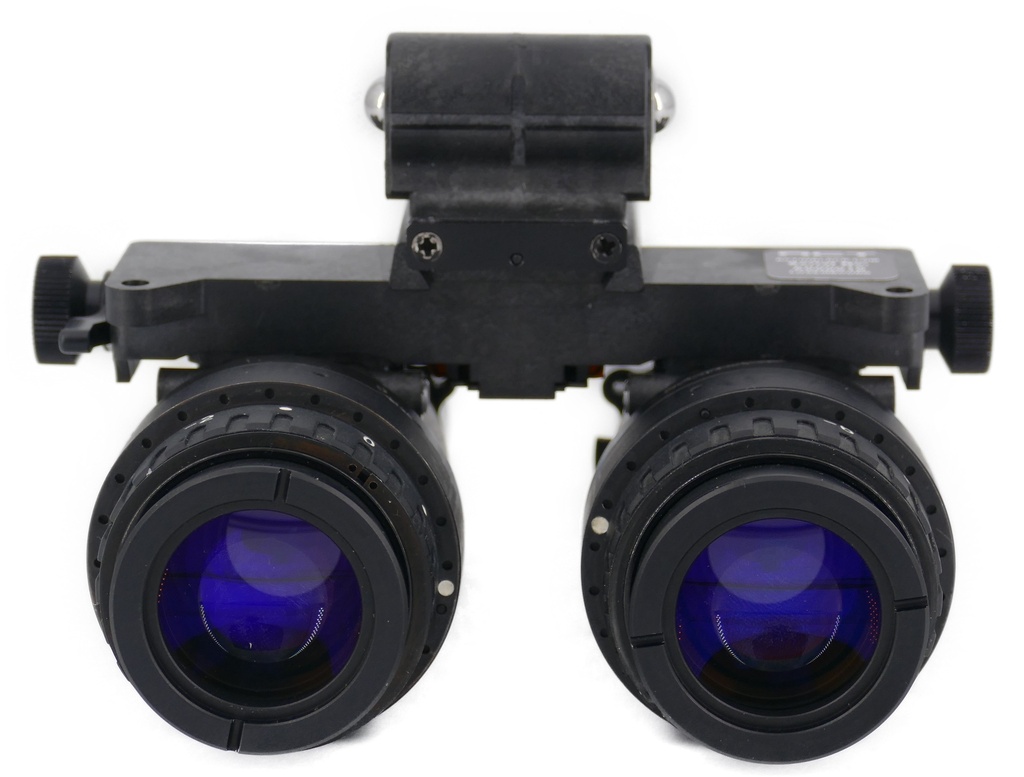

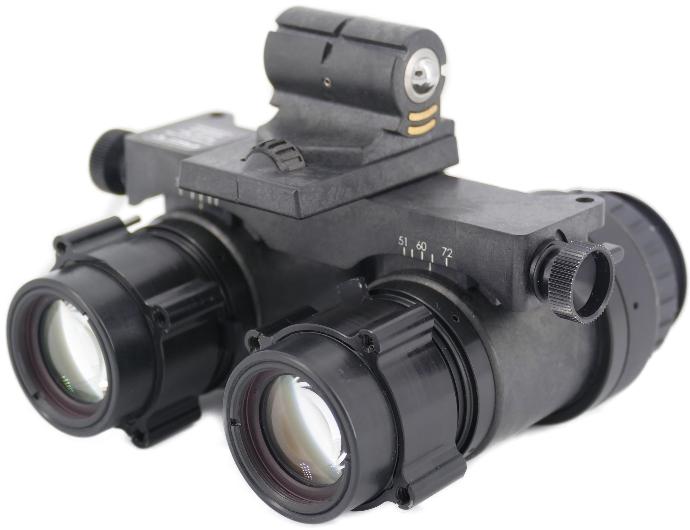

First developed by ITT in 1992, the F4949 night vision system continually has improved and is now
designated the AN/AVS-9(V) by the U.S. Government. The (V) indicates there are many versions in
service. The F4949 series is the standard night flying system for the air crews of the U.S. Air Force and
Navy. Over 26,000 F4949 systems are in service in 34 nations, worldwide.

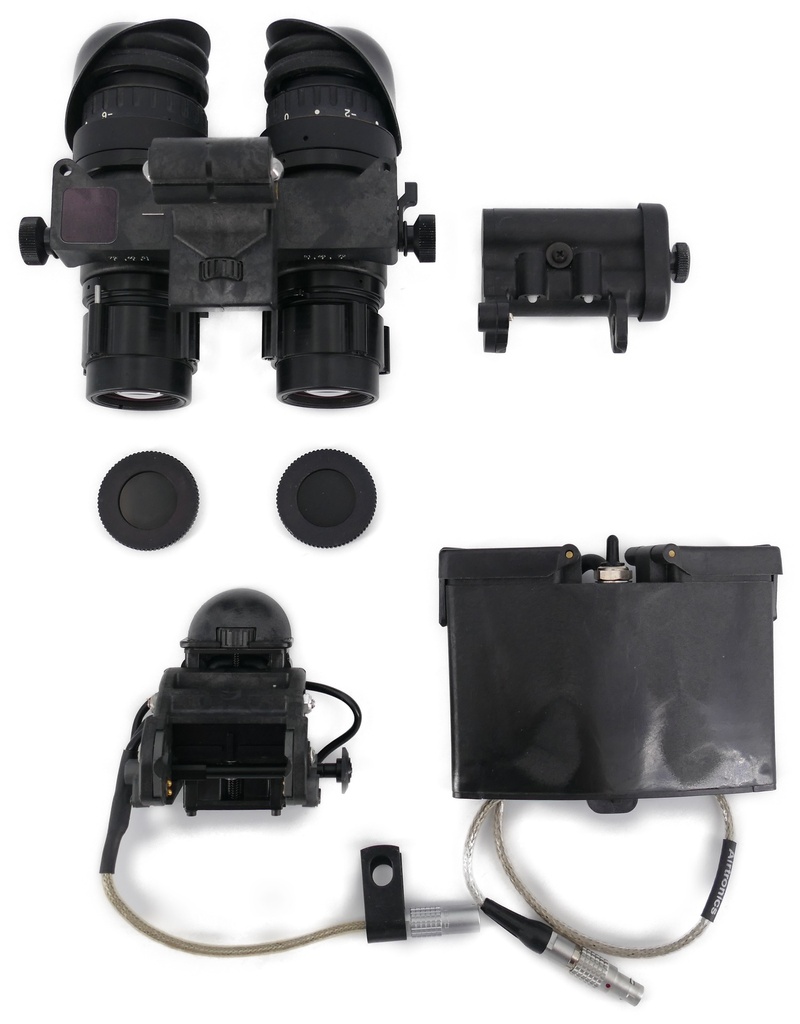

Rotary-wing versions of the F4949 feature a rear-mounted, low-profile battery pack, which uses four
AA alkaline batteries, allowing operation for more than 50 hours. Power is provided by a cable extending

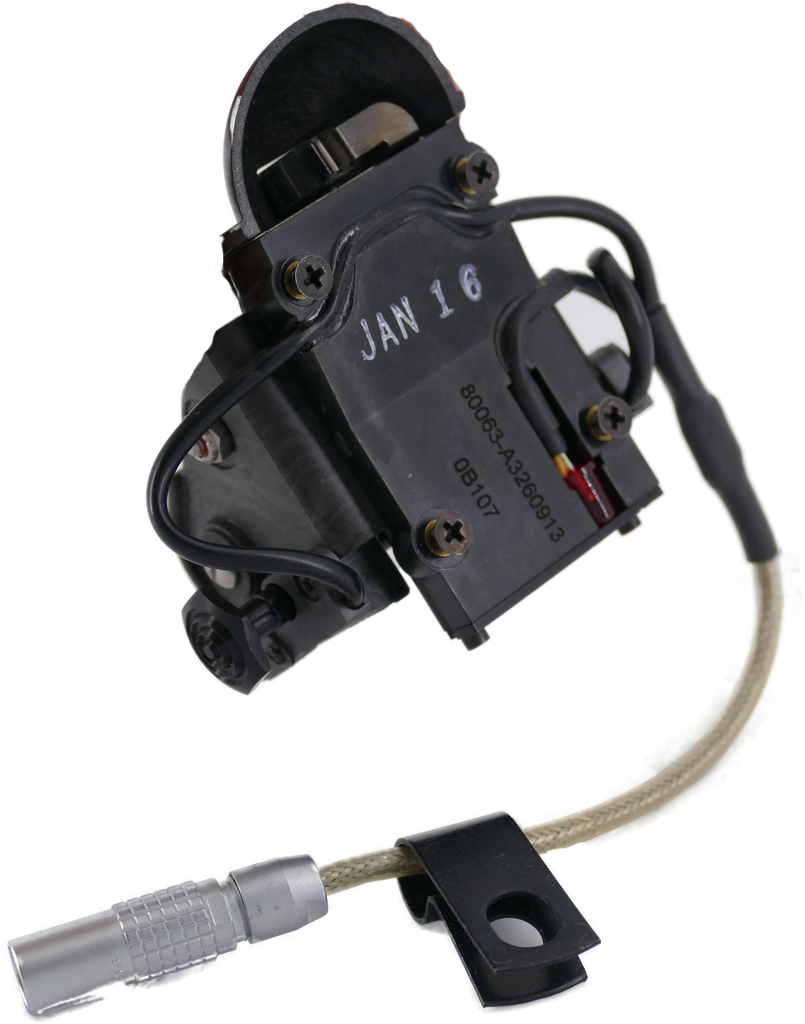

from the battery pack, over the helmet, and into a connector in the mount.
Fixed-wing versions feature a front-mounted battery pack, which uses two 1/2 AA lithium batteries that
allow operation for more than 16 hours. An optional battery pack adapter enables connection of the
fixed-wing F4949 to the rear-mounted battery pack, providing the same operational time as the rotarywing versions when ejection is not a consideration. An optional clip-on power source enables hand-held
operation of the binocular without use of a flight helmet.
ITT's F4949 series of aviator's night vision systems is available in over 40 different configurations. The type
of aircraft and type of helmet being used will determine which configuration – existing or customized – will
best meet our customer's requirements.
Magnification: 1x Lens System: 27mm FOV: 40° Range of Focus: 0.41m to ∞ Diopter Adjustment: +2 to -6 dpt Infrared Illuminator: No IR Indicator: No Low Battery Indicator: Yes (in FOV) Power Supply: External battery pack 2x Double AA batterys Enviromental Rating: Water Resistant Battery Life: 20h Dimensions: 4.75 x 4.5 x 3.25" / 12.1 x 11.4 x 8.3 mm Weight: 590g Operating Temperature Range: -32°C to +52°C
The 4G tube Standard defines the minimum performance specifications giving end-users the capabilities of high end night vision performance. 4G tubes also implies a modification of the Military Standards of Night Vision testing. From the lowest light levels of desertic areas in Afghanistan (defined at Night Level 6 or less than 100µlx) up to the very complex low to high light situations.
The 4G tubes has a extended Bandwidth from below 400nm to above 900nm!
High Signal to Noise ratio combined with a high Resolution and a small halo will result in outstanding performance in multi mission roles.
