  2. J-FB V2 ECHO+ 2.000-2.200 FOM WP Thermal Fusion Bino
Price list 2023

J-FB V2 ECHO+ 2.000-2.200 FOM WP Thermal Fusion Bino

*Price excl. VAT*

11,780.00 € 11780.0 EUR 11,780.00 €

11,780.00 €

    This combination does not exist.

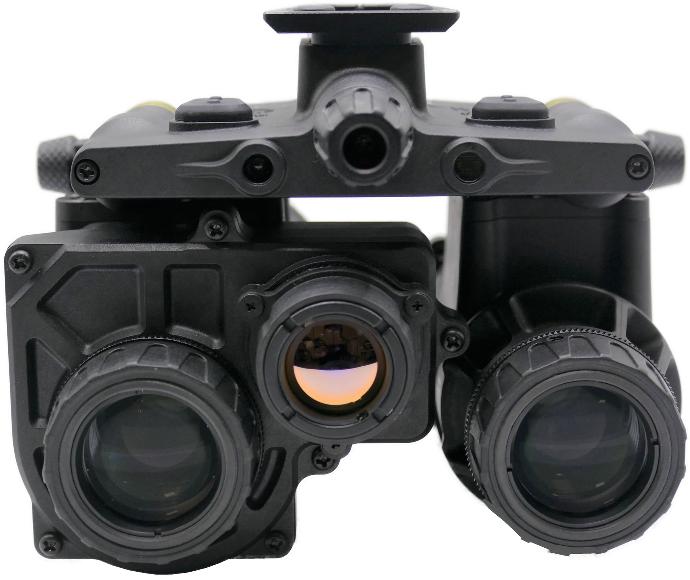

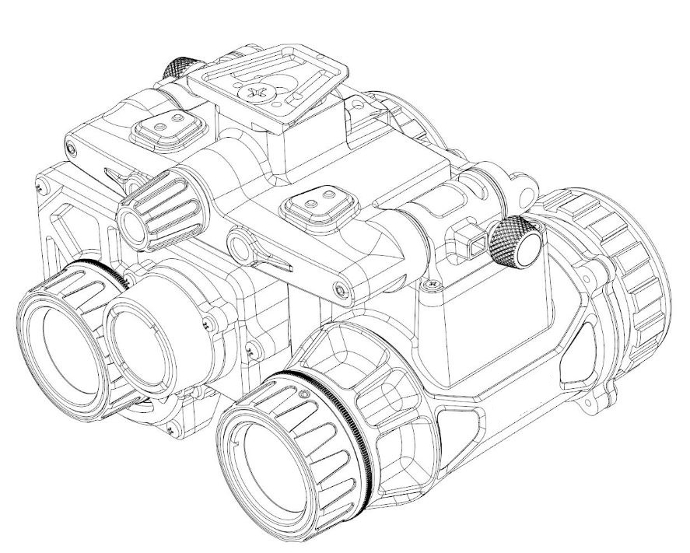

    Jerry-FB is equipped with a new generation of night vision fusion technology, by which the binocular three-dimensional imaging and thermal imaging technology make it possible for users to recognize targets and distinguish threats quickly. Matched with external devices, it can realize the functions of rapid target acquisition (RTA) and augmented reality (AR) so as to increase the ability of situational awareness and self-protection.

    The detector with a 640x512 resolution offers a quite high resolution and thus provides an increased reconnaissance range. With the external battery compartment, a runtime of min. 8 hours to max. 60 hours is achieved. The weight of the night vision device (without power supply) is only 600 g. Different display modes, such as target enhancement and outline, allow the user to adapt the thermal module and its display to a wide variety of situations.






    Magnification: 1x
    Lens System: F/1.2
    FOV: 40° (night vision), 25.9°x20.9° (infrared thermal screen)
    Range of Focus: 0.25m to ∞
    Diopter Adjustment: +2 to -3 dpt
    Infrared Illuminator: Yes
    Low Battery Indicator: Yes (in FOV)
    Power Supply: External Battery pack with two 18650 (not included)
    Environmental Rating: IP67
    Battery Life: 8h (infrared fusion mode), up to 60h (night vision mode only)
    Dimensions: 107 x 115 x 85mm
    Weight:  Device: 570-600g (depends on the tubes), + 320g (Battery pack + Cable)

    Additional Infos:

    System Gain: 1408
    Infrared Thermal Imaging: 640×512-12μm
    Display Mode: White-hot, highlight, outline
    Display Adjustment: Brightness
    Rapid Target Acquisition: Support
    Induction Information Display: Support
    Up-turning Shutdown: Support
    IPD-stop adjust: Yes
    Positioning: GPS/GONLNASS Dual Band
    Navigation: Fixed Point Navigation - Double Point
    Compass: Digital Compass

    With a high Figure of Merit (FOM) form 2.000+ and a fast Auto-Gating, ECHO+ tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.

    ONYX (Photonis White Phosphor Tubes) is the optional black and white night vision of Photonis.
    Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. Photonis offers B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows. .



    The J-FB, featuring integrated thermal, providing the user with fused thermal imaging, and gives the end user with unmatched target acquisition. The combination of analog image intensifiers and digital thermal sensors provides the user with augmented reality capability

    The unit features two switches on top, the left is used to activate and switch between the different thermal modes, and the right, powering the unit on and off. The middle dial on the housing is used not only for manual gain, but to turn up the volume of the thermal, being able to display a sharper or a more subdued image.
