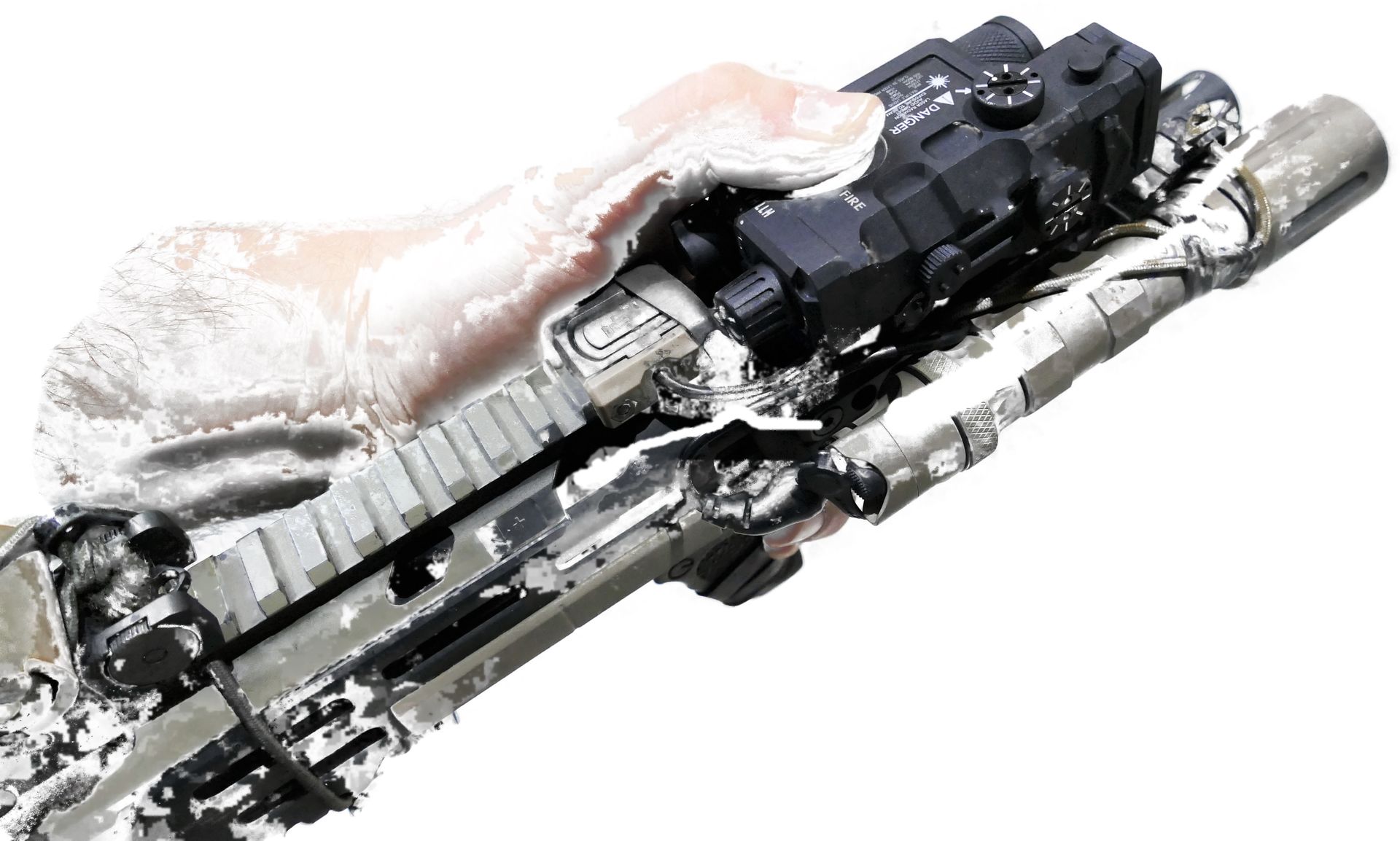

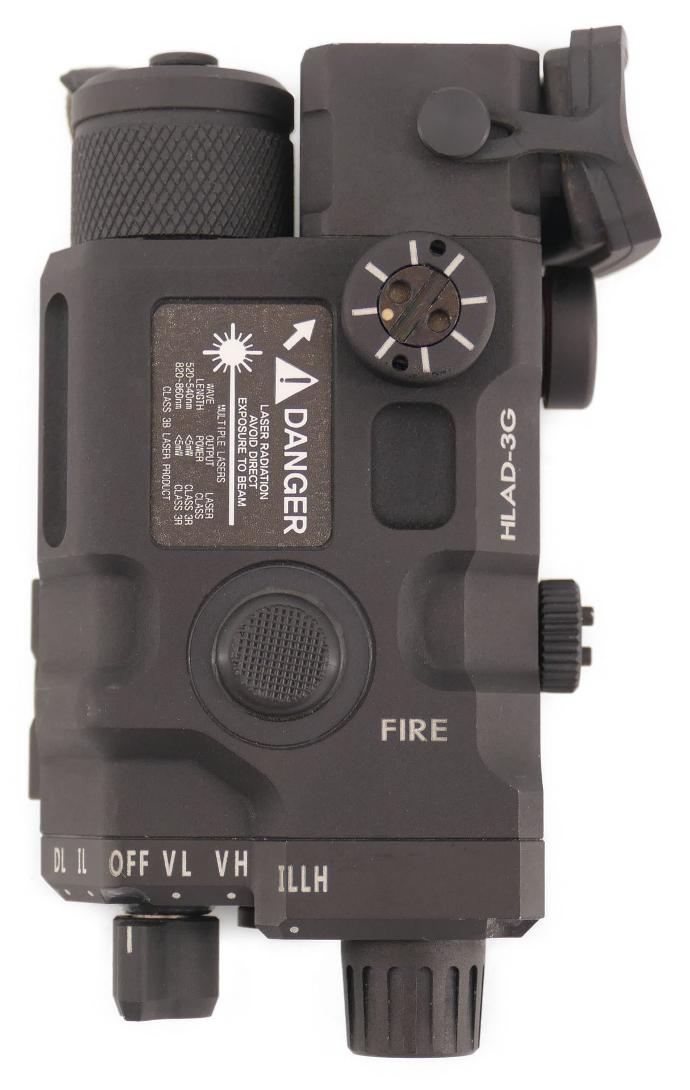

The HLAD-3G Laser combines a visible green laser for rapid threat identification in day/ low light with covert IR aiming laser with two modes (low and high) and a rear focusing IR illuminator for tactical night vision operations. The HLAD-3G green and IR aiming laser and the illuminator are build in in the same housing controlled with a single set of windage and elevation dials. The HLAD-3G operates in four modes: Visible Targeting Laser/ IR Targeting Laser/ IR llluminator/ IR llluminator with IR Targeting Laser. Also, The HLAD-3G is Mil Standard-810G and ESD compliant. The HLAD-3G uses a NATO/Crane standard plug for use with any switch/button on the market. Activation is controlled with the included remote cable pressure pad switch or the very ergonomic built–in single tap button on top of the housing body for easy access. Power is supplied by a standard CR123 battery. The HLAD-3G is designed for Picatinny Rail's.
Material: Aluminium 6061-T6 Weight: 250 gr Size: 104mm x 58mm x 42mm
Power Output: Vis Green Laser: 0.7mW Low / 5mW High
IR Pointer: 0.7mW High
Illuminator: 5mW High
Wave lenght:Vis Green Laser: 520-540nm Green
IR Pointer: 835-860nm
Beam Divergence: Visible Green Laser: 0.8mrad
IR Pointer: 0.8mrad
Laser Type: Vis Green Laser: Class 3R
IR Pointer: Class 1
Illuminator: Class 3R
Storage temperature: -20°C - + 60°C Power Supply: CR123 (DH Dual high mode 6h, IH Infrared high mode 25h)
Mil Spec Design 6061-T6 NATO/Crane style remote switch plug. Eye safe levels on all operation modes MIL-STD-810G requirements (as noted) Co-aligned Visible & IR aiming lasers and Illuminator Auto Off Feature To Save Battery Life Fully adjustable 1/4 MOA windage and elevation
Included System Components:
HLAD-3G Laser Unit Quick Release Picatinny Mount Remote cable pressure pad switch w/ Crane Plug for use with any dual switch or button. User Manual Zeroing Tool

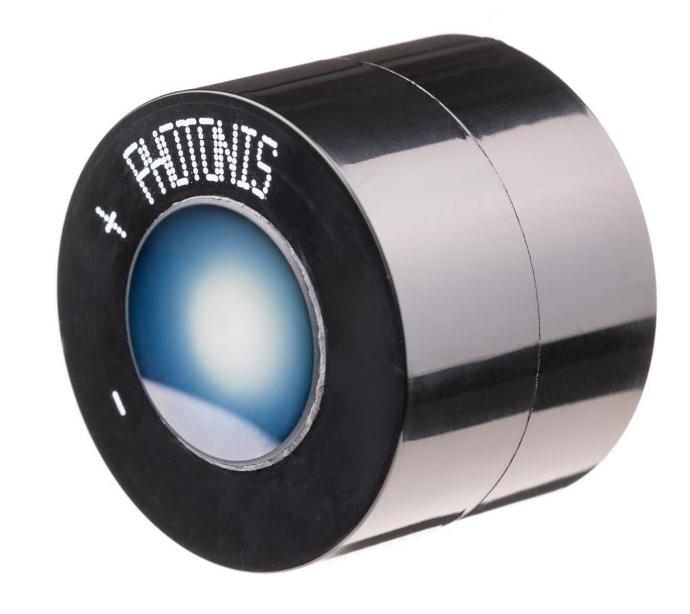

With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO commercial grade tubes serve many night vision
applications for users that require the extra range and details at night. Every image intensifier is supplied with its
unique data sheet, providing the most relevant performance information for the user.

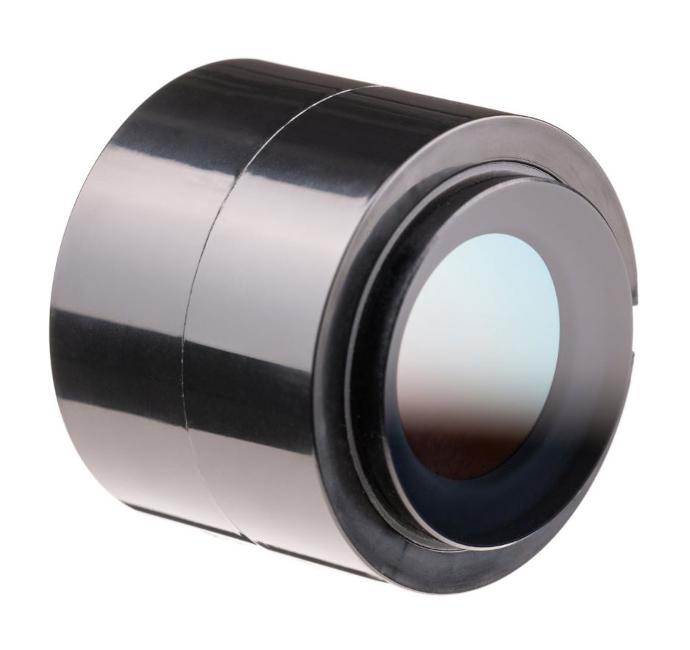

16mm tubes have been designed to meet the SWaP requirements of the modern armies: reduced Size, Weight and minimum Power consumption, with state-of-the-art performance. The weight of the 16mm Image Intensifier Tube has been reduced by 27 grams compared to standard ANVIS 18mm tube while its volume size has been reduced by 35%.
