Product description

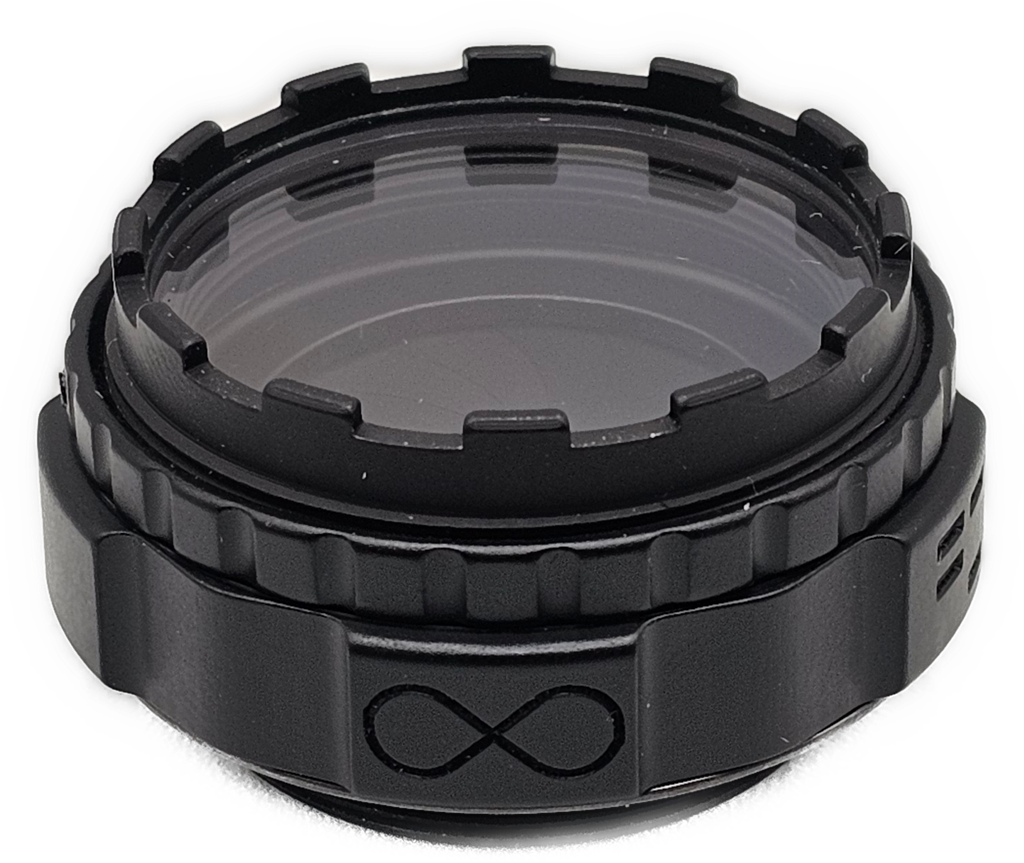

The Infinity Cap is designed to offer end users reliable protection and enable full use of their Night Vision Devices. Built out of durable 6061 T6 Aluminum, the Infinity Cap is ready to take abuse. Securing to the NVG objective lens via threads, the Infinity Cap will not run the risk of popping off and an o-ring keeps debris out. The Infinity Cap features a polycarbonate sacrificial lens to keep your NVG objective lens from being scratched or damaged as well.
Additionally, the Infinity Cap offers huge levels of focal adjustment with the patent-pending click-stop™ technology. With the turn of the Infinity Cap Turret, you can adjust the from 23.5mm down to 1mm with a click-stop™ at 5.66mm which puts you right at infinite focus. This crucial stopping point allows users to quickly shift their iris to infinity via tactile feedback, allowing users to easily identify what's in front of them with full clarity. If lighting does not permit infinity focus, the user can gradually adjust open or open it all the way quickly if lighting conditions change rapidly. Our iris system gives you the perfect balance of adjustability and utility.
Durable 6061 T6 Aluminum Housing
Anodizing conforms to MIL-A-8625F Type II Class 1 and Class 2 Standard
Securely mounts to the objective lens to avoid accidental removal
Polycarbonate sacrificial lens for 92% light transmission
O-ring for keeping debris out
Adjustable Iris that goes from 1mm to 23.5mm
Click-Stop™ technology allows you to quickly set the iris to infinity via a tactile “click” feedback
Sacrificial lens holder can accept aftermarket accessories for pvs-14 style lens such as LIF or sacrificial lenses with an outside diameter not exceeding 32.4mm
Will fit on any PVS14 objective lenses.
Will also fit on the below units:
PVS 7
PVS14
PVS23
Act in Black
DTNVG
DTNVS
DTAMS/STAMS
The 14
Argus 1431
AB night vision
All RNVG
RPNVG
MOD3 BRAVO
Low Light Innovations
LLUL-21
Aeternus
MH-1
TNVC
BNVG-M ARTEMIS
GSCI
PVS-31C
LUX-14
Magnification: 1x
Lens System: F/1.2
FOV: 40°
Range of Focus: 0.25m to ∞
Diopter Adjustment: +2 to -6 dpt
Infrared Illuminator: Yes
IR Indicator: Yes (in FOV)
Low Battery Indicator: Yes (in FOV)
Power Supply: CR123
Enviromental Rating: Waterproof 20m
Battery Life: 30h
Dimensions: 76 x 105 x 111mm
Weight: 510g
With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO tubes serve many night vision
applications for users that require the extra range and details at night. Every image intensifier is supplied with its
unique data sheet, providing the most relevant performance information for the user.
ONYX (Photonis White Phosphor Tubes) is the optional black and white night vision of Photonis.
Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. Photonis offers B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows.
.
