J-YM 640x512 Thermal

*Price excl. VAT*

2,738.85 € 2738.85 EUR 2,945.00 €

2,945.00 €

    This combination does not exist.

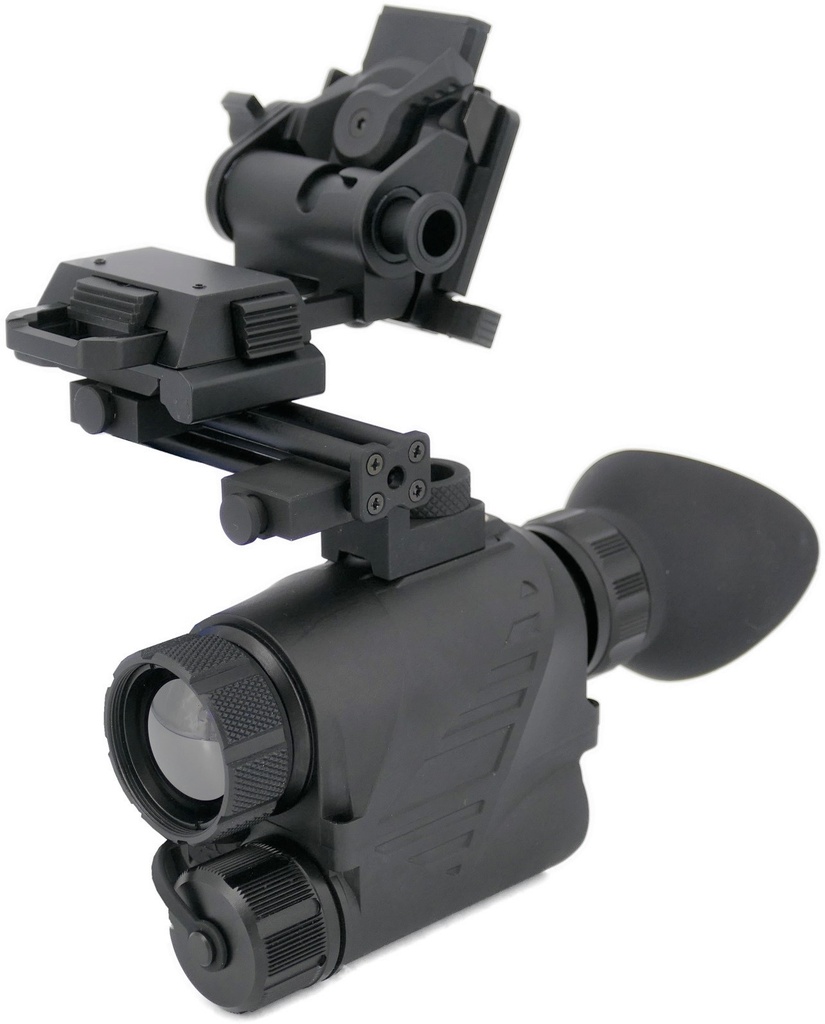

    The J-YM is a multi functional monocular thermal imaging device, which can be used for observation and target search under night, dim, dark, bad weather and during the day time. Featuring a compact size, light weight, low consumption for a acceptable battery life. Due its small and handy design it is a versatile device and it can be used as a handheld device or helmet mounted. It is suitable for enforcement, outdoor, hunting, wildlife exploration, observation and search and rescue scenarios.

    In the set included is the thermal monocular device itself, adjustable mounting arm, helmet mount, cable and user manual.




    Thermal

    Pixel Pitch:                               12μm

    Resolution:                               640x512

    Frame rate:                              50 Hz

    Display (OLED):                        1024x768

    Optical

    Focal length F1.0:                   26.7mm

    FOV:                                       16,3° x 12,3°

    Diopter adjustment:               -5 / +2

    Optical magnification:            1x

     Eye relief:                              25mm

     Plug

    Type-C:                                   power input, serial port, video output

    Display mode

    Polarity:                                 blackhot, whitehot, iron, color

    Mode:                                     default, outdoor, polar, rainforest

    Functional Parameters

    Battery:                                 1x 18650 (3.7V)

    Max. Battery life without WiFi:  max 6h

    Weight & Volume

    Weight without battery:         230g

    Volume:                                  110×48×72mm

    Environmental requirements

    Encapsulation:                        IP67

    Operation temperature:         -20°C to +50°C



    With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.

    ONYX (Photonis White Phosphor Tubes) is the optional black and white night vision of Photonis.
    Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. Photonis offers B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows. .
