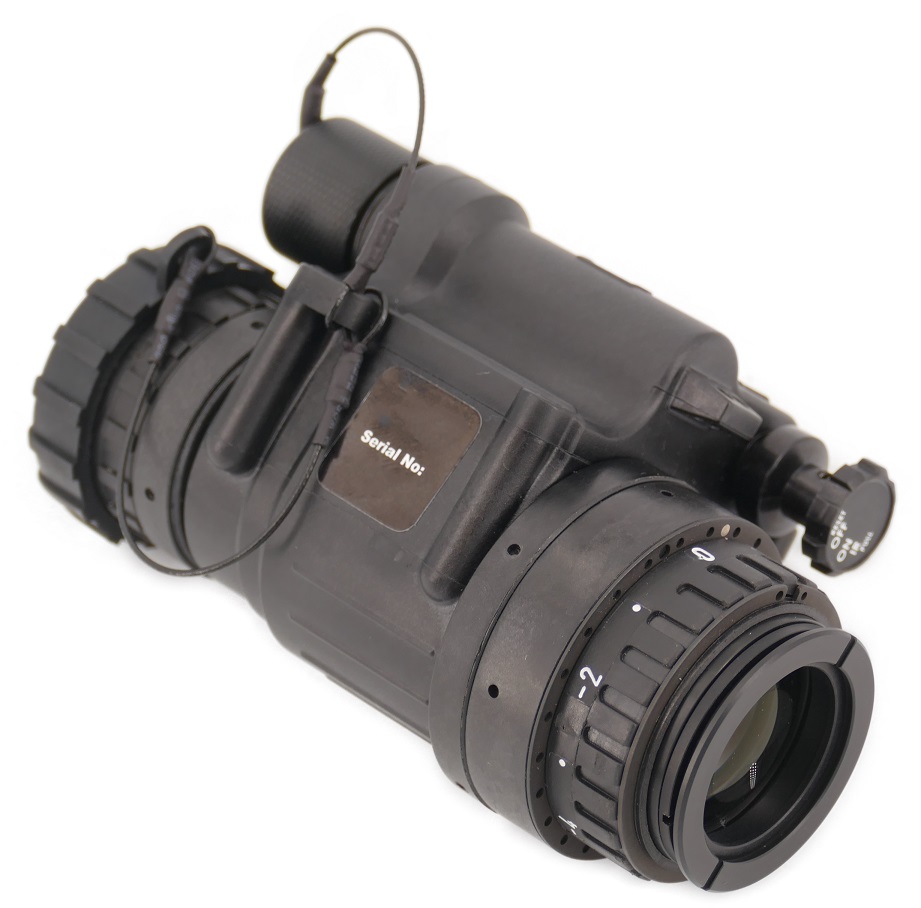

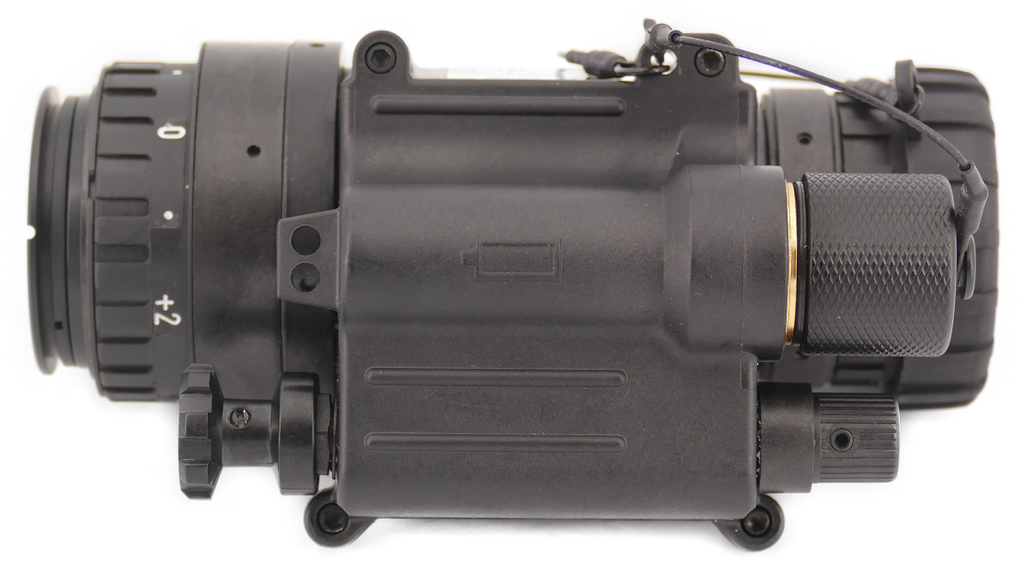

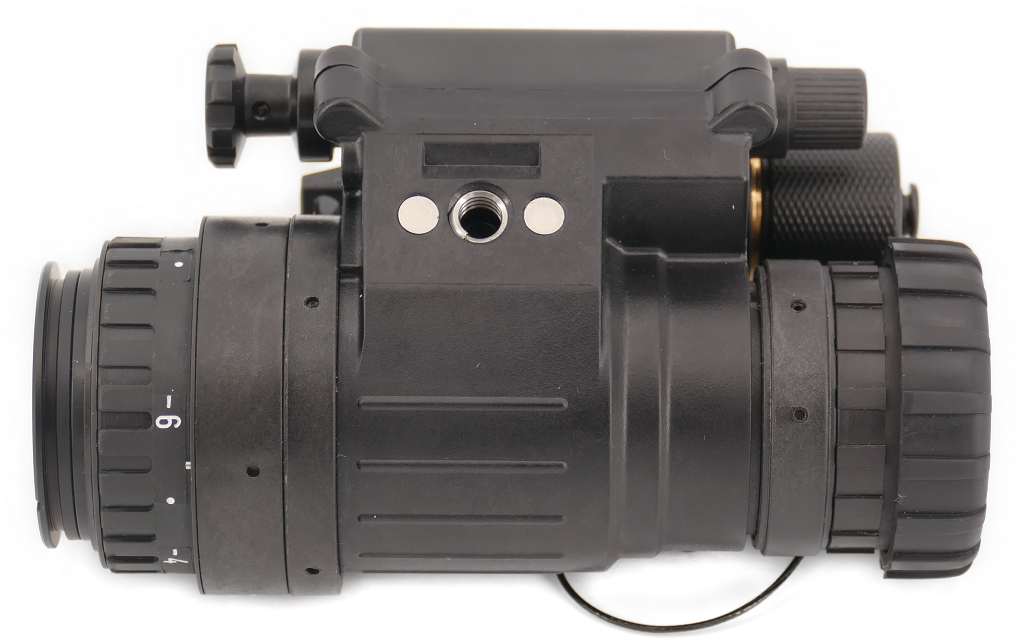

The PVS-14 monocular is the most versatile of night vision diveses. This PVS-14 is 100% compatible with the AN/PVS-14 used by the US Military for decades. This device is the military standard when it goes to night vision devices. PVS-14’s can be mounted on helmets for hands-free use, behind weapon optics, or simply as a handheld device for observation. Its versatility makes it the choice for Law Enforcement Professionals as well.
Magnification: 1x
Lens System: 26mm, F/1.2
FOV: 36°
Range of Focus: 0.25m to ∞
Diopter Adjustment: +2 to -6 dpt
Infrared Illuminator: Yes
IR Indicator: Yes (in FOV)
Low Battery Indicator: Yes (in FOV)
Power Supply: AA
Enviromental Rating: 1m for 30min
Battery Life: 40h
Dimensions: 104 x 60 x 50mm
Weight: 335g Manual Gain: Yes
With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO commercial grade tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.
16mm tubes have been designed to meet the SWaP requirements of the modern armies:
reduced Size, Weight and minimum Power consumption, with state-of-the-art performance.
The weight of the 16mm Image Intensifier Tube has been reduced by 27 grams compared to standard ANVIS 18mm tube while its volume size has been reduced by 35%.

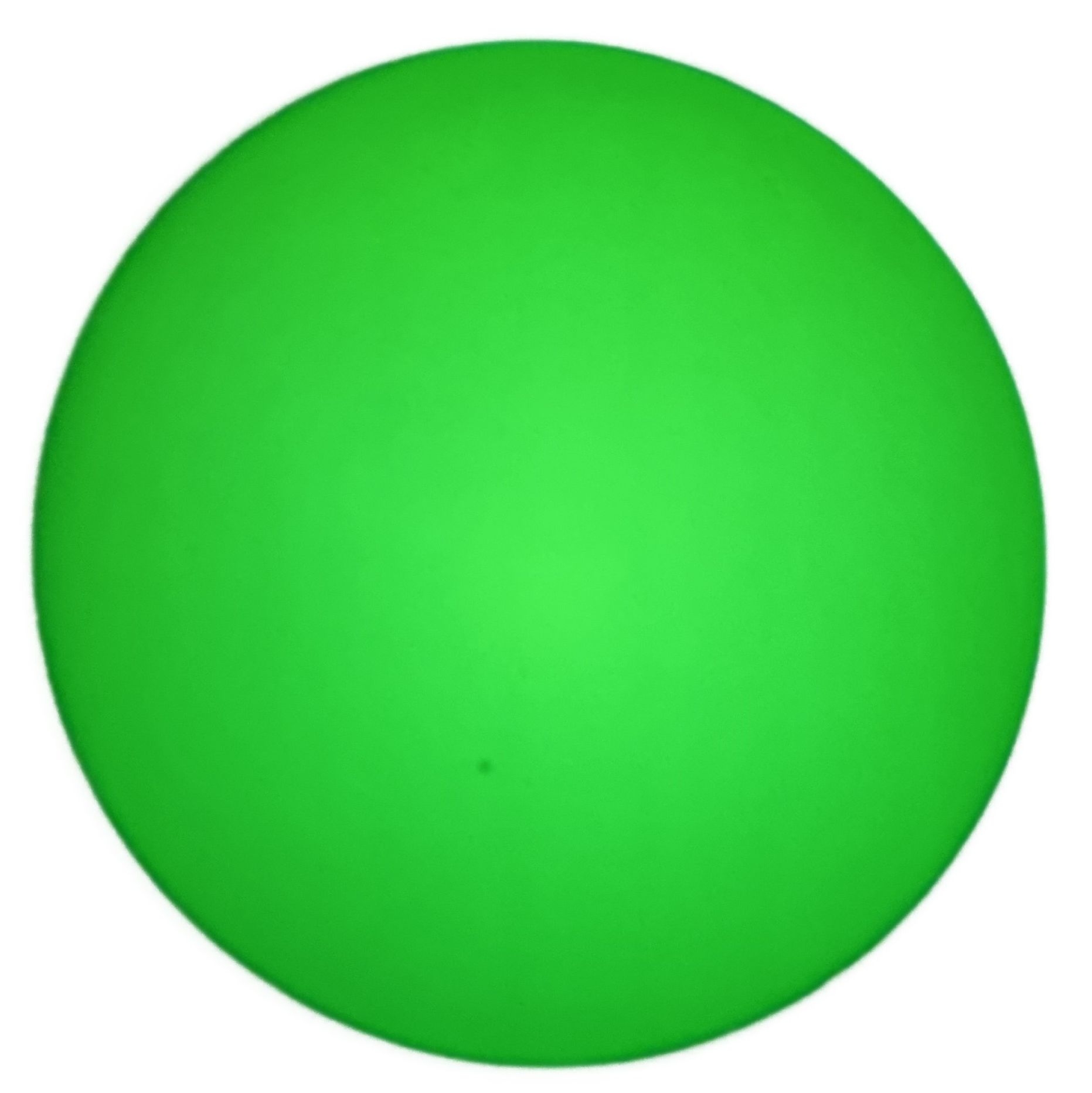

A001911
FOM: 1.838
Gain: 12.402
Resolution: 72
S/N: 25.54
EBI: 0.20
3.590 € +VAT

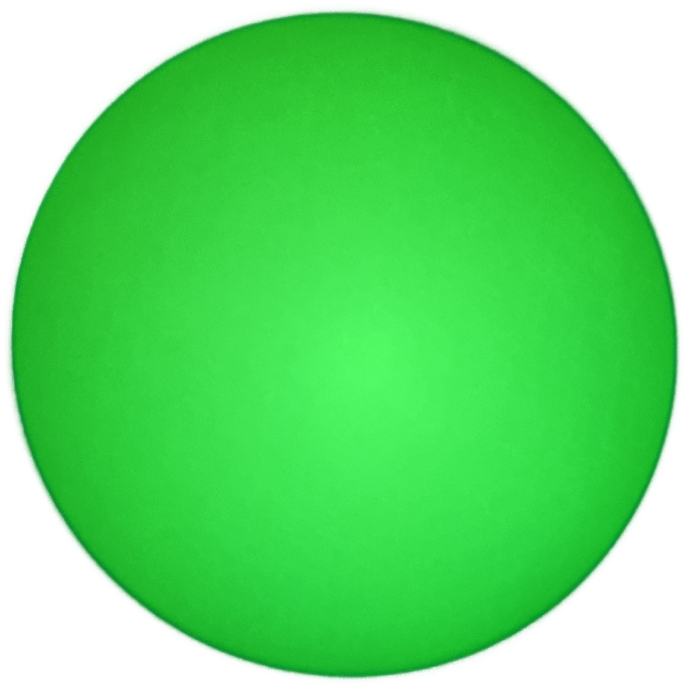

A001956
FOM: 2.089
Gain: 12.274
Resolution: 68
S/N: 30.73
EBI: 0.16
3.750 € +VAT

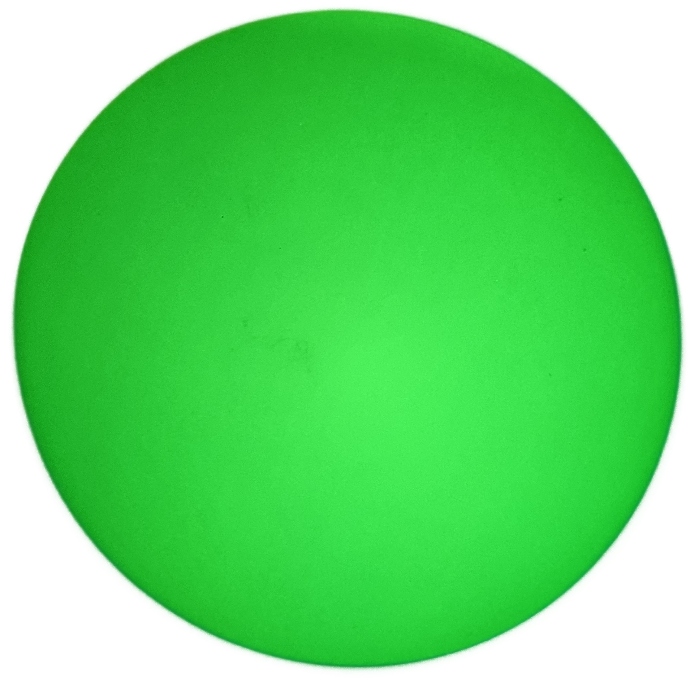

A001982
FOM: 2.101
Gain: 12.766
Resolution: 68
S/N: 30.90
EBI: 0.24
3.750 € +VAT

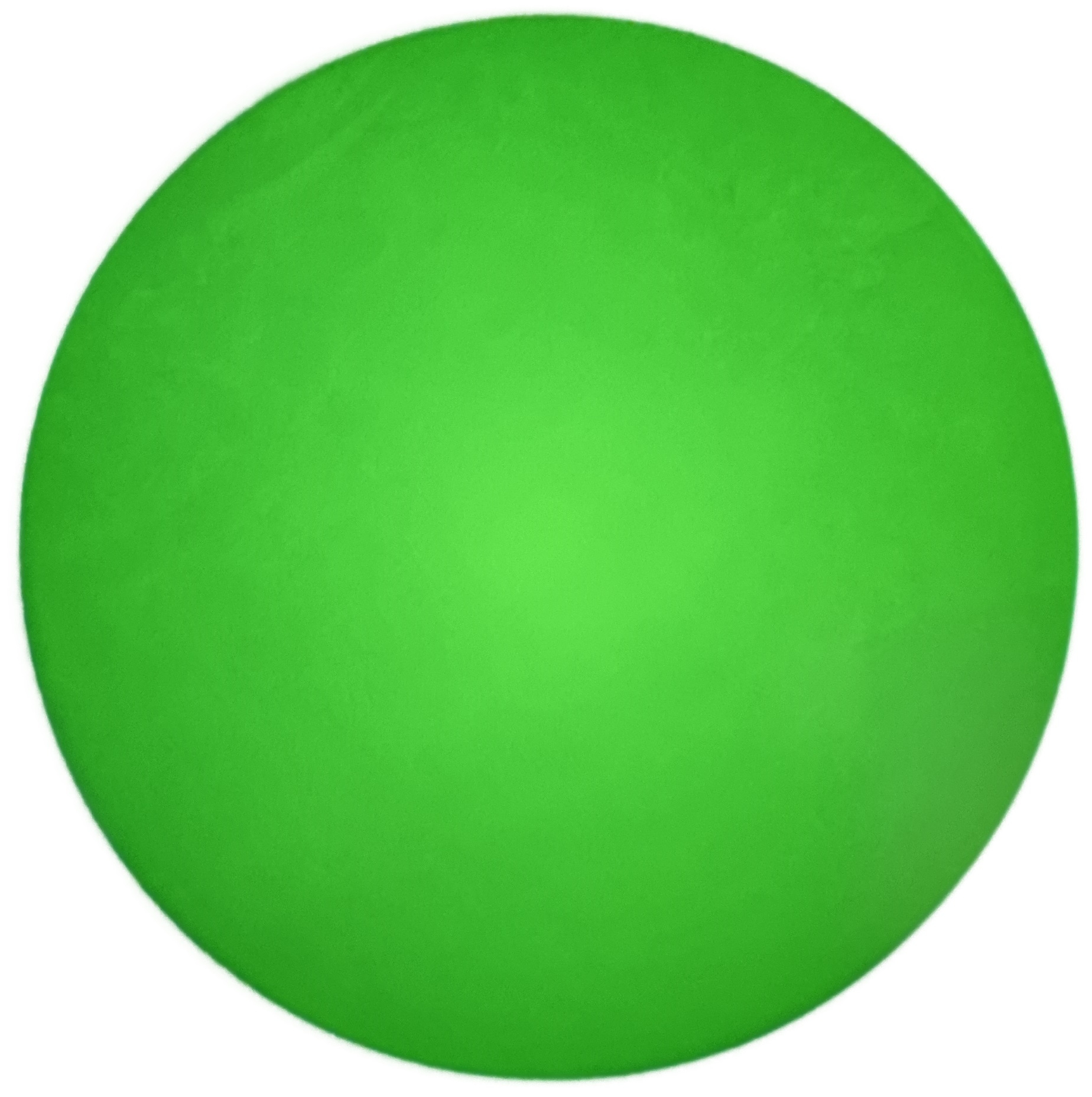

A003072
FOM: 2.305
Gain: 12.324
Resolution: 72
S/N: 32.02
EBI: 0.17
3.750 € +VAT

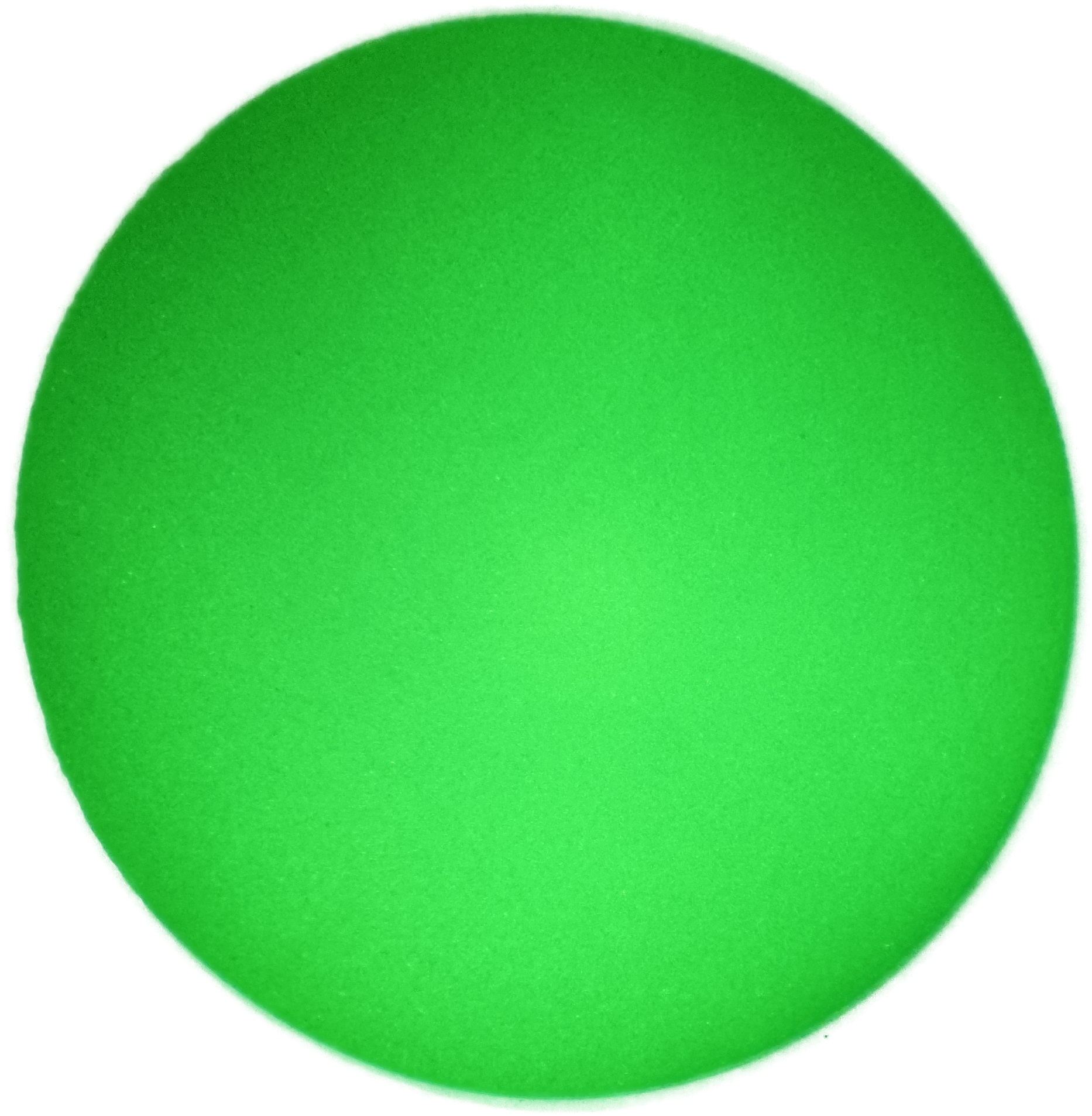

A003075
FOM: 2.266
Gain: 12.103
Resolution: 72
S/N: 31.48
EBI: 0.24
3.750 € +VAT

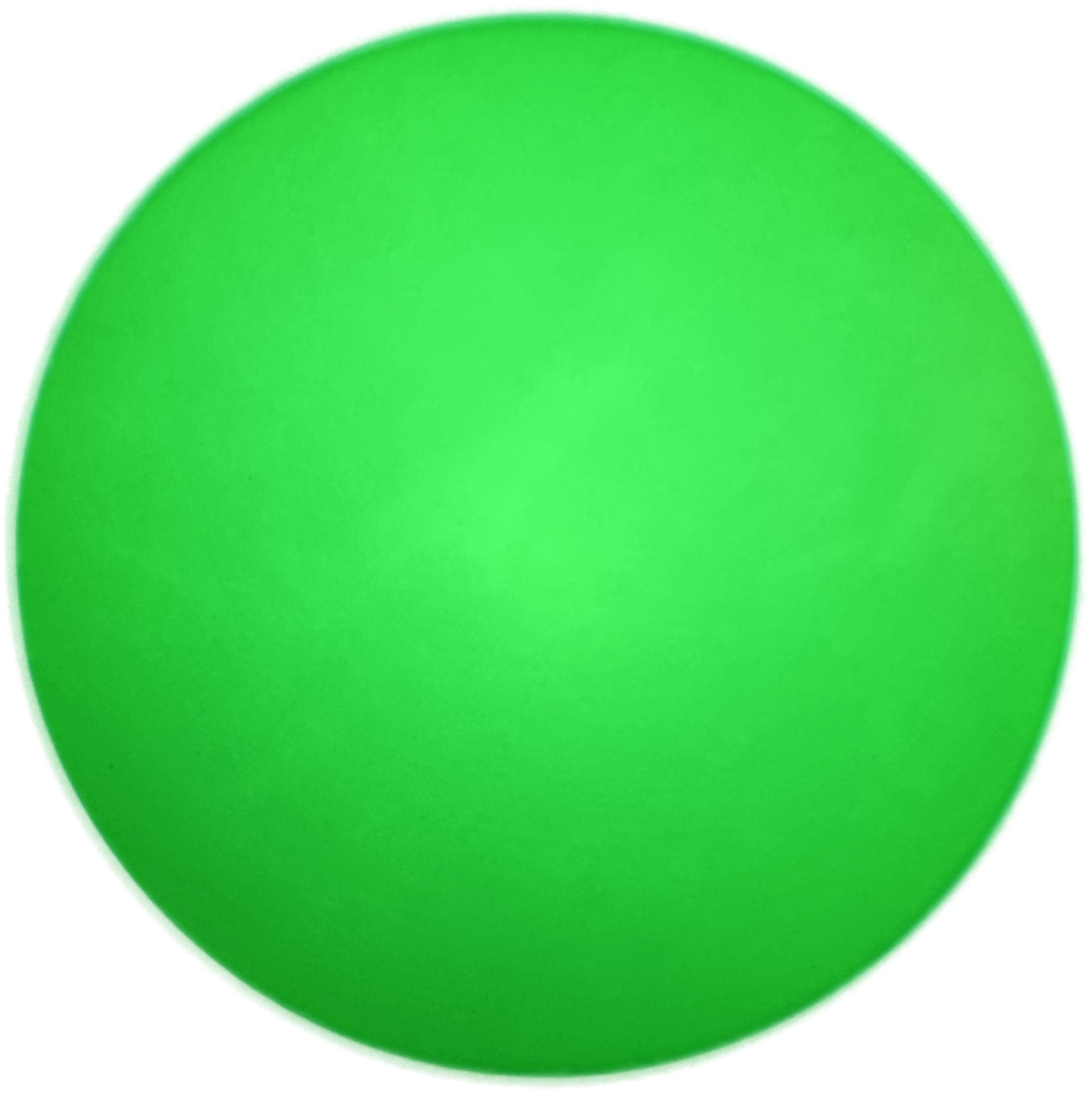

A003076
FOM: 2.147
Gain: 11.547
Resolution: 68
S/N: 31.58
EBI: 0.11
3.750 € +VAT

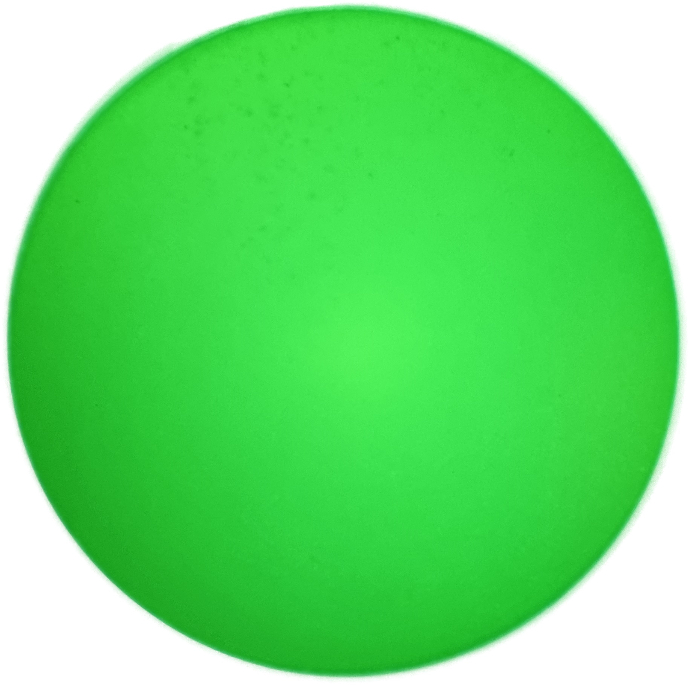

A003077
FOM: 2.202
Gain: 12.287
Resolution: 72
S/N: 30.59
EBI: 0.18
3.750 € +VAT

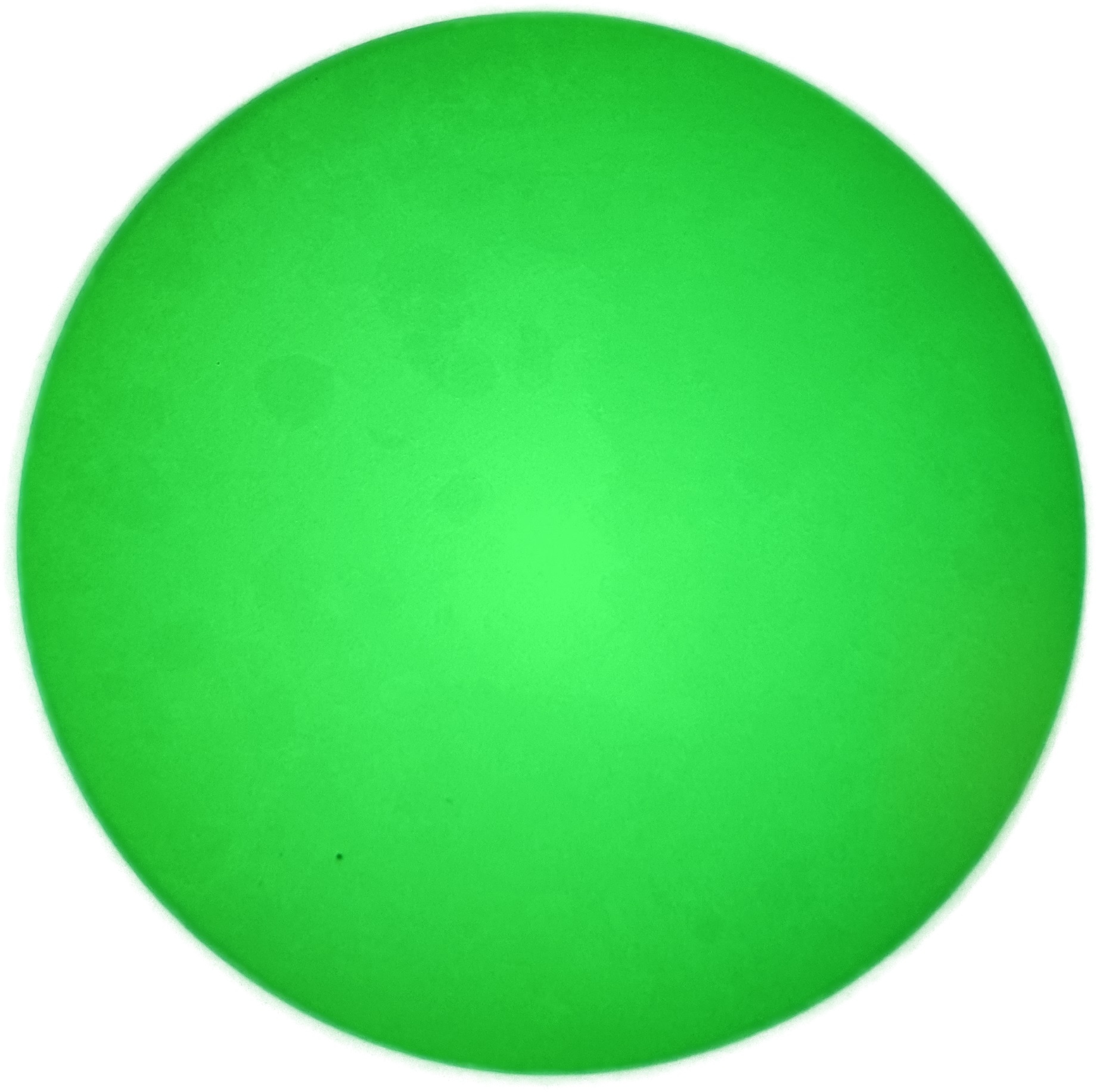

A003080
FOM: 2.107
Gain: 12.595
Resolution: 68
S/N: 30.99
EBI: 0.10
-SOLD-
A003117
FOM: 2.148
Gain: 12.458
Resolution: 68
S/N: 31.60
EBI: 0.19
3.750 € +VAT
A003187
FOM: 2.234
Gain: 12.584
Resolution: 68
S/N: 32.86
EBI: 0.20
3.750 € +VAT
A003147
FOM: 2.195
Gain: 12.664
Resolution: 68
S/N: 32.29
EBI: 0.05
3.750 € +VAT
A003149
FOM: 2.316
Gain: 13.159
Resolution: 72
S/N: 32.17
EBI: 0.08
3.750 € +VAT
A003145
FOM: 2.235
Gain: 12.319
Resolution: 70
S/N: 31.93
EBI: 0.10
3.750 € +VAT
A003186
FOM: 2.214
Gain: 11.929
Resolution: 68
S/N: 32.57
EBI: 0.16
3.750 € +VAT
A003148
FOM: 2.420
Gain: 11.728
Resolution: 72
S/N: 33.62
EBI: 0.19
3.950 € +VAT
A003154
FOM: 2.257
Gain: 11.966
Resolution: 72
S/N: 31.36
EBI: 0.09
3.750 € +VAT
A003156
FOM: 2.305
Gain: 11.932
Resolution: 68
S/N: 33.91
EBI: 0.23
-SOLD-
A003155
FOM: 2.235
Gain: 12.974
Resolution: 68
S/N: 32.87
EBI: 0.16
3.750 € +VAT
A003151
FOM: 2.593
Gain: 12.897
Resolution: 80
S/N: 32.42
EBI: 0.22
3.950 € +VAT
A003150
FOM: 2.255
Gain: 13.503
Resolution: 72
S/N: 31.33
EBI: 0.15
3.750 € +VAT
