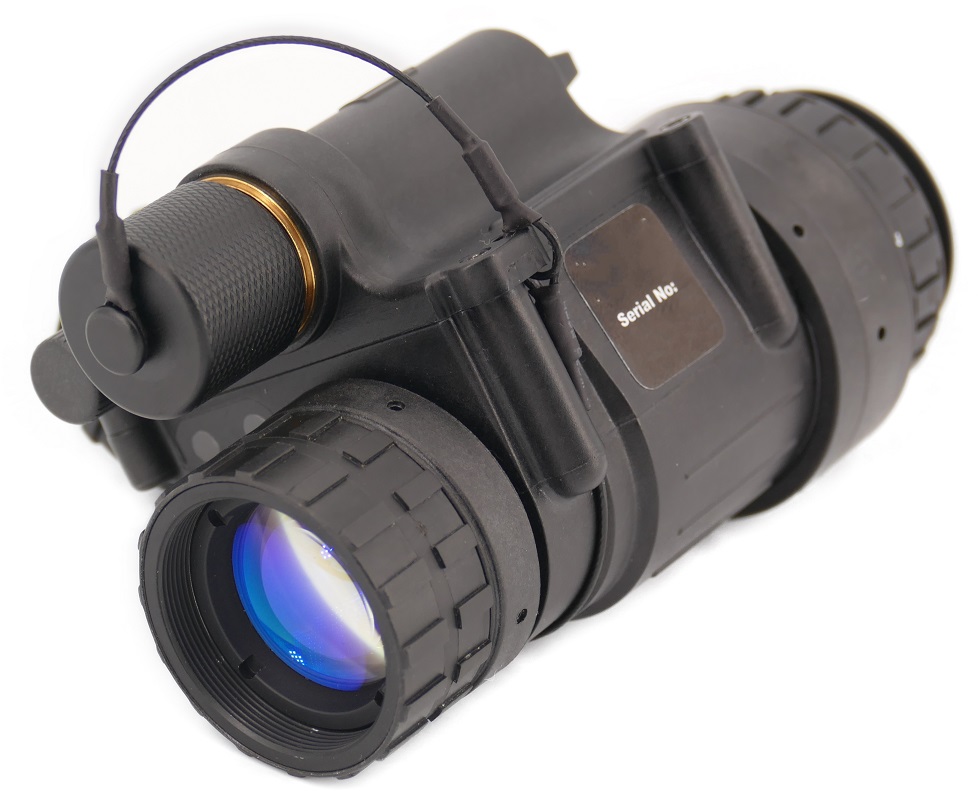

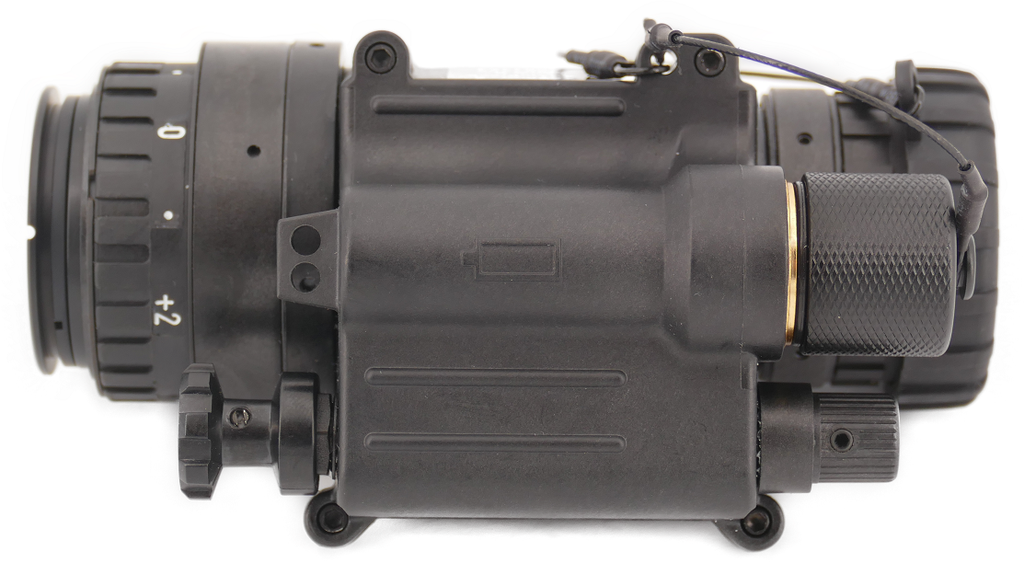

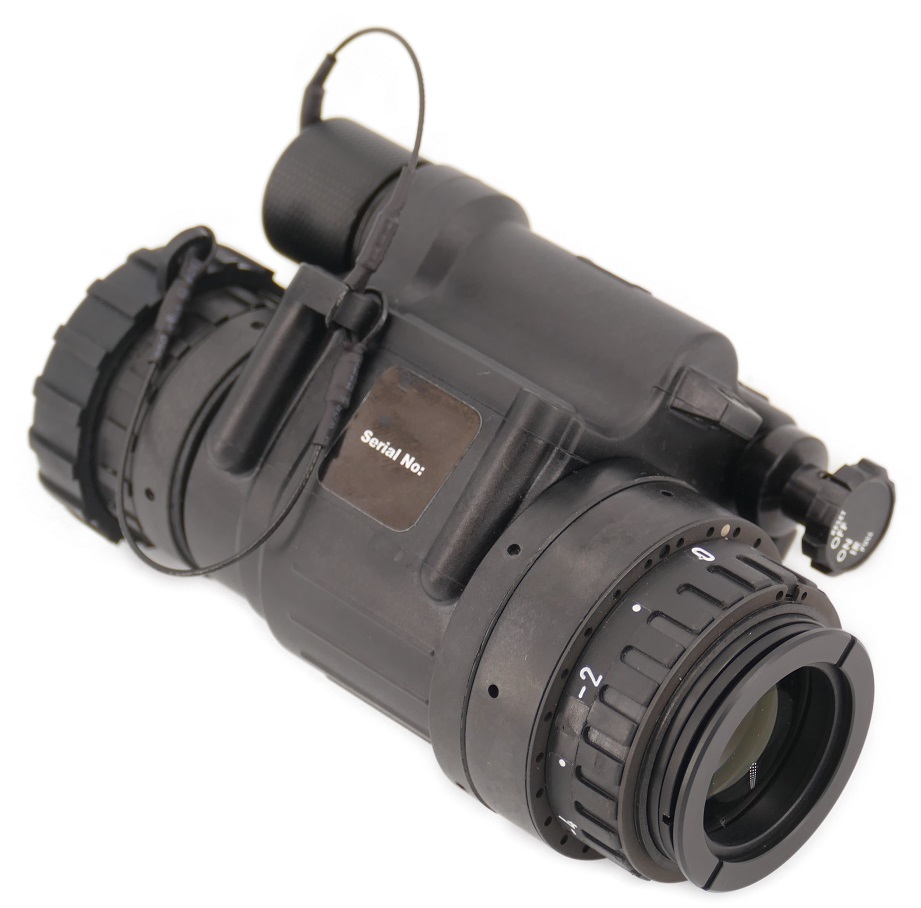

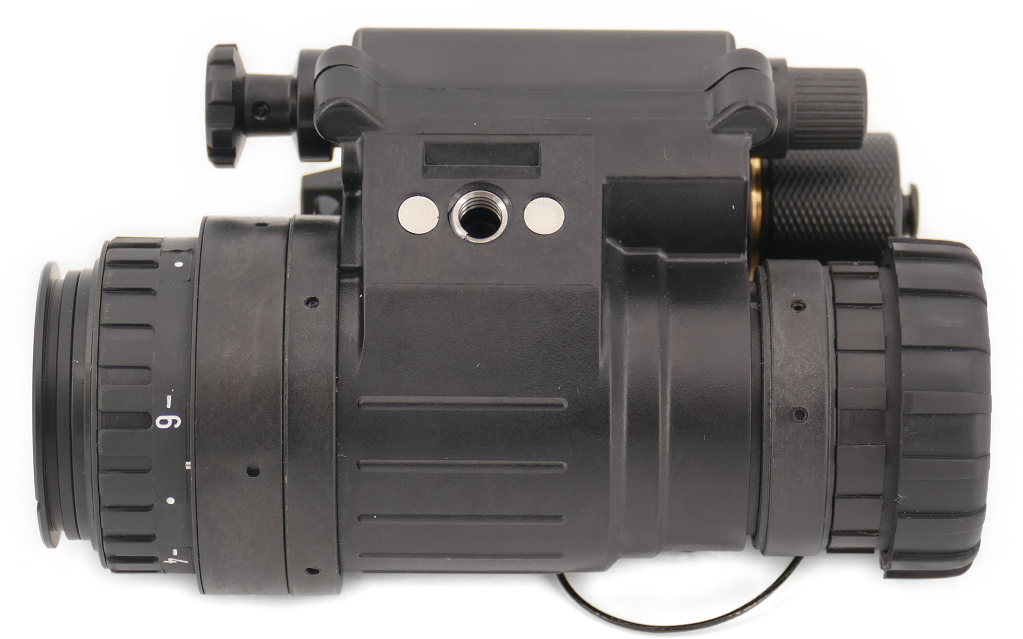

The PVS-14 monocular is one of the most versatile night vision devices. This PVS-14 is 100% compatible with the AN/PVS-14 used by the US Military for decades. This device is the military standard when it comes to night vision devices. PVS-14’s can be mounted on helmets for hands-free use, behind weapon optics, or simply as a handheld device for observation. Its versatility makes it the first choice for Law Enforcement Professionals as well.
Magnification: 1x
Lens System: 26mm, F/1.2
FOV: 36°
Range of Focus: 0.25m to ∞
Diopter Adjustment: +2 to -6 dpt
Infrared Illuminator: Yes
IR Indicator: Yes (in FOV)
Low Battery Indicator: Yes (in FOV)
Power Supply: AA
Enviromental Rating: 1m for 30min
Battery Life: 40h
Dimensions: 104 x 60 x 50mm
Weight: 335g Manual Gain: Yes
With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO commercial grade tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.
16mm tubes have been designed to meet the SWaP requirements of the modern armies:
reduced Size, Weight and minimum Power consumption, with state-of-the-art performance.
The weight of the 16mm Image Intensifier Tube has been reduced by 27 grams compared to standard ANVIS 18mm tube while its volume size has been reduced by 35%.
A003171
FOM: 2.124
Gain: 8.674
Resolution: 72
S/N: 29.50
EBI: 0.14
3.912 € +VAT
A003172
FOM: 2.268
Gain: 9.112
Resolution: 72
S/N: 31.51
EBI: 0.13
4.040 € +VAT
